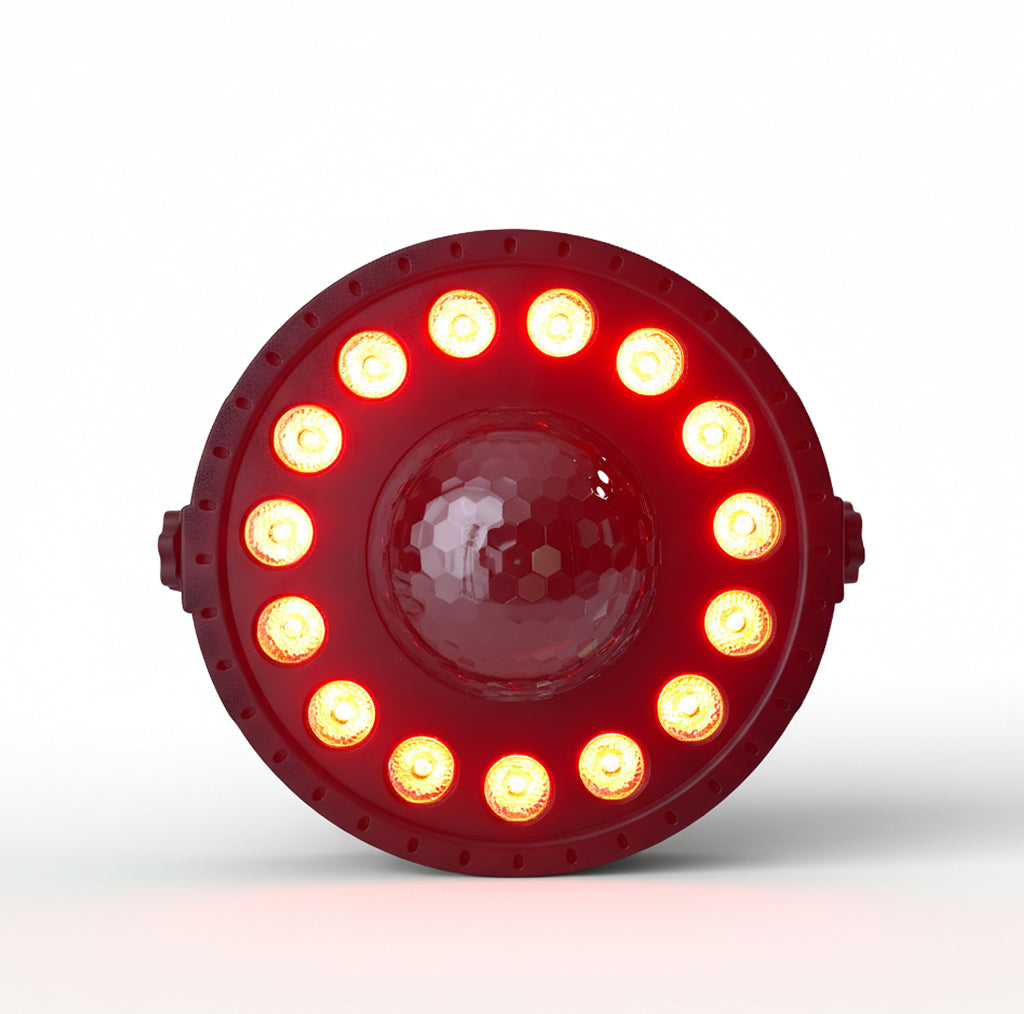

MUSYSIC MU-LVS39 LED Effect PAR Light
The MUSYSIC MU-LVS39 is a powerful multi‑effect LED PAR fixture combining a vibrant RGB color wash with a dynamic RGBW gobo flower effect. Designed for DJs, clubs, weddings, parties, stages, and event production, this fixture delivers rich color mixing, moving gobo patterns, strobe effects, and full DMX control—all in a compact, lightweight housing.
Key Features
-
Dual‑effect design: RGB PAR wash + RGBW gobo flower effect.
-
15 × 1.5W RGB LEDs: Bright, vivid color wash output.
-
4 × 3W RGBW gobo LEDs: Moving patterns and dynamic effects.
-
12‑channel DMX control: Full control over dimming, colors, gobos, strobe, and motor speed.
-
Multiple operating modes: Auto, Sound, Master/Slave, DMX, IR Remote.
-
Strobe effect: Adjustable speed from slow to fast.
-
Motorized gobo movement: Adjustable speed via DMX or menu.
-
Digital LED display: Easy navigation with Menu/Up/Down/Enter buttons.
-
Wide voltage compatibility: AC 110–240V, 50/60Hz.
-
Lightweight & durable: Ideal for mobile DJs and event setups.
Operating Modes
- Static Color Mode
- Color Changing Mode
- Color Fade Mode
- Auto Run Mode
- Sound Active Mode
- Master/Slave Mode
- DMX Mode
-
IR Remote Control (color, strobe, jump, breathe, motor speed, DMX select)
DMX Channel Functions (12CH)
-
CH1: Master Dimmer
-
CH2: Red Dimmer
-
CH3: Green Dimmer
-
CH4: Blue Dimmer
-
CH5: Gobo Pattern 1 Dimmer
-
CH6: Gobo Pattern 2 Dimmer
-
CH7: Gobo Pattern 3 Dimmer
-
CH8: Gobo Pattern 4 Dimmer
-
CH9: Strobe (slow → fast)
-
CH10: Color macros, jump, fade, sound mode
-
CH11: Additional color macros, jump, breathe, sound mode
-
CH12: Motor speed (slow → fast)
Technical Specifications
-
DMX Channels: 12
-
Voltage: AC 110–240V, 50/60Hz
-
Power Consumption: 30W
-
LEDs: 15 × 1.5W RGB + 4 × 3W RGBW gobo
-
Control Modes: Auto, Sound, Master/Slave, DMX, IR Remote
-
Color Mixing: RGB (wash), RGBW (gobo)
Ideal Applications
- DJs & mobile entertainers
- Clubs & lounges
- Weddings & private parties
- Stage lighting
- Bars & restaurants
- Event production
- Home parties & holiday lighting
The MUSYSIC MU-LVS39 delivers a complete lighting experience with powerful color washes, moving gobo effects, and flexible control options—perfect for transforming any venue with vibrant, dynamic lighting.
