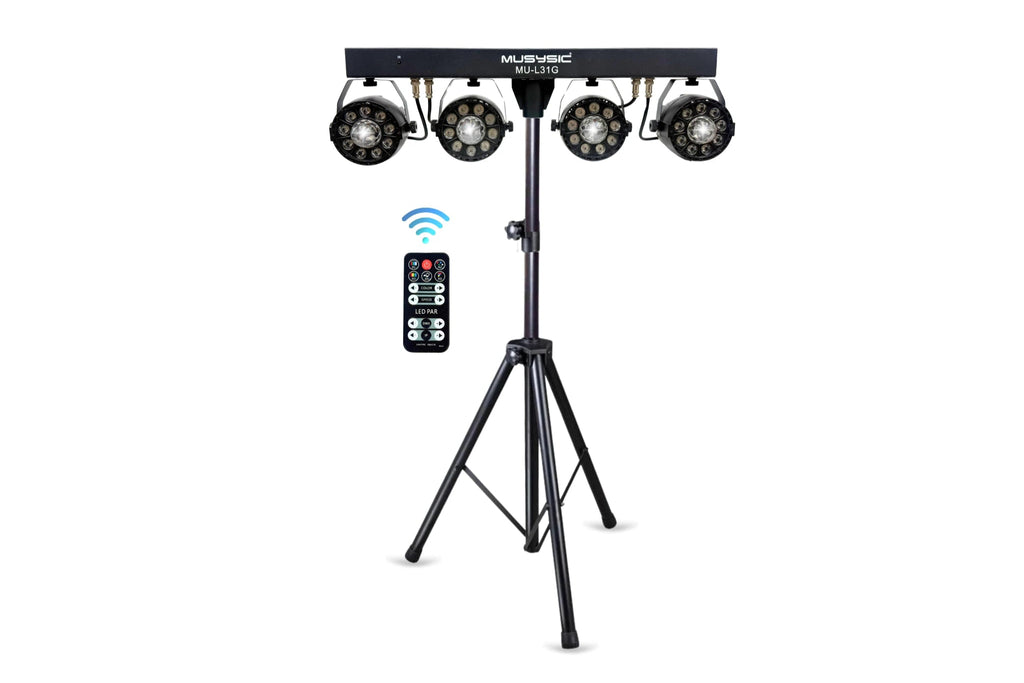

MUSYSIC MU-L31G Professional LED PAR Light
The MUSYSIC MU-L31G is a high‑output LED PAR stage light engineered for DJs, clubs, weddings, churches, event production, and professional lighting installations. Featuring 36×1W RGBW LEDs, 8‑channel DMX512 control, multiple built‑in programs, sound‑activated effects, and a full‑function remote control, the MU‑L31G delivers vibrant color washes, dynamic movement, and reliable performance for any lighting environment.
Key Features
-
36×1W RGBW LEDs: Bright, vivid output with smooth color mixing.
-
8‑channel DMX512 control: Full control over dimming, macros, speed, and effects.
-
Multiple operating modes: Auto, DMX, Sound‑activated, Strobe, Remote control.
-
Internal programs: Solid color, jump, rainbow, sound active, strobe, auto run, scrolling.
-
Remote control included: Adjust colors, speed, macros, strobe, and DMX settings wirelessly.
-
Linear 0–100% dimming: Smooth fades and transitions.
-
RGB Ball effect: Unique rotating color effect (CH8).
-
25° beam angle: Ideal for stage wash, uplighting, and ambient lighting.
-
LED display with menu buttons: Easy DMX addressing and mode selection.
-
Lightweight & durable: Only 5kg with a rugged housing.
DMX Channel Functions (8CH)
-
CH1 – Macro Programs: A1–A5 color macros, RGB combinations.
- CH2 – Macro Color Selection
- CH3 – Speed Adjustment
- CH4 – Master Dimmer
- CH5 – Red Dimming
- CH6 – Green Dimming
- CH7 – Blue Dimming
- CH8 – RGB Ball Effect
Remote Control Functions
-
A1: Solid color mode
-
A2: Jump color change
-
A3: Gradual color fade
-
A4: Sound‑activated mode
-
A5: Strobe mode
-
Color buttons: Adjust RGB intensity
-
Speed buttons: Adjust effect speed
-
DMX buttons: Set DMX address
-
IP buttons: Select internal running effects
Technical Specifications
-
Voltage: AC 110–240V, 50/60Hz
-
Power: 60W
-
LEDs: 36×1W RGBW (12R/12G/12B/12W) + 4×3×1W RGB
-
Beam Angle: 25°
-
Dimming: 0–100% linear
-
Control Modes: Auto, DMX512, Sound, Remote
-
DMX Channels: 8CH
-
Dimensions: 900 × 340 × 160 mm
-
Net Weight: 5 kg
-
Gross Weight: 6 kg
Ideal Applications
- DJ lighting
- Stage and concert lighting
- Churches & worship events
- Bars, clubs & lounges
- Weddings & parties
- Uplighting & wall wash
- Event production
The MUSYSIC MU-L31G delivers professional lighting performance with powerful output, flexible control options, and a wide range of built‑in effects—making it the perfect choice for DJs, venues, and event professionals who need reliable, dynamic lighting in any environment.
