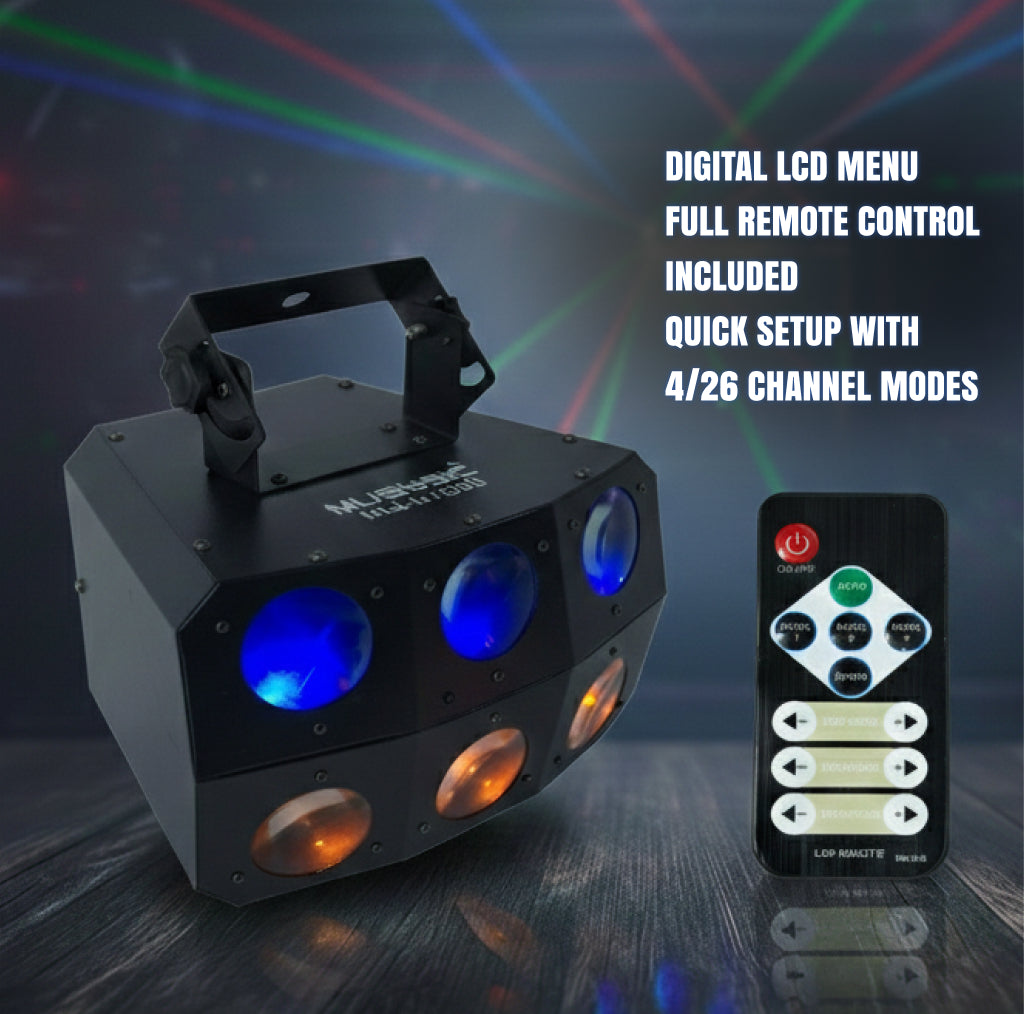

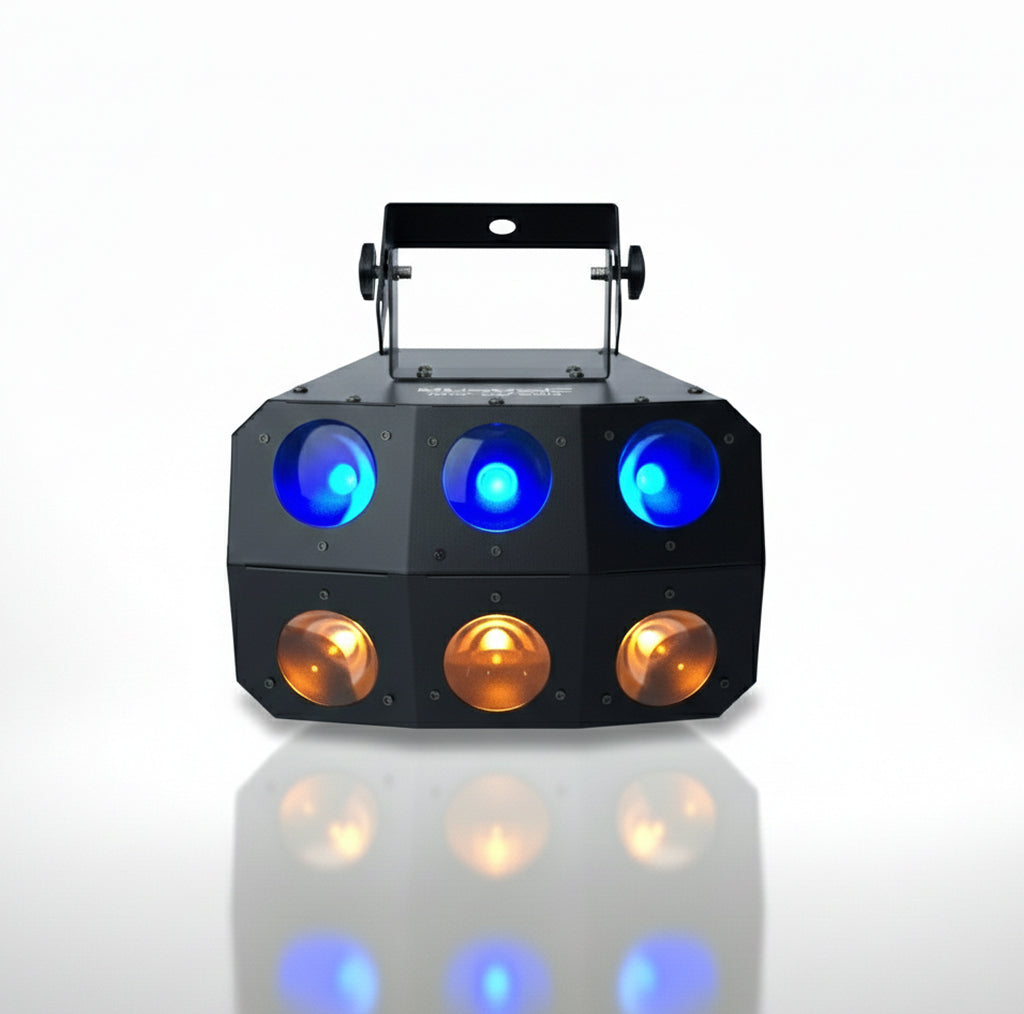

MUSYSIC MU-LVS80 Derby Matrix Beam Light
The MUSYSIC MU-LVS80 is a high‑performance Derby Matrix Beam effect light designed for DJs, clubs, stages, weddings, parties, and event production. With powerful multi‑beam RGBW output, 4‑channel and 26‑channel DMX modes, sound‑active operation, and master/slave synchronization, the MU‑LVS80 delivers intense, room‑filling effects that energize any venue.
Key Features
-
Derby Matrix Beam effect: Wide‑angle multi‑beam output with vibrant RGBW color.
-

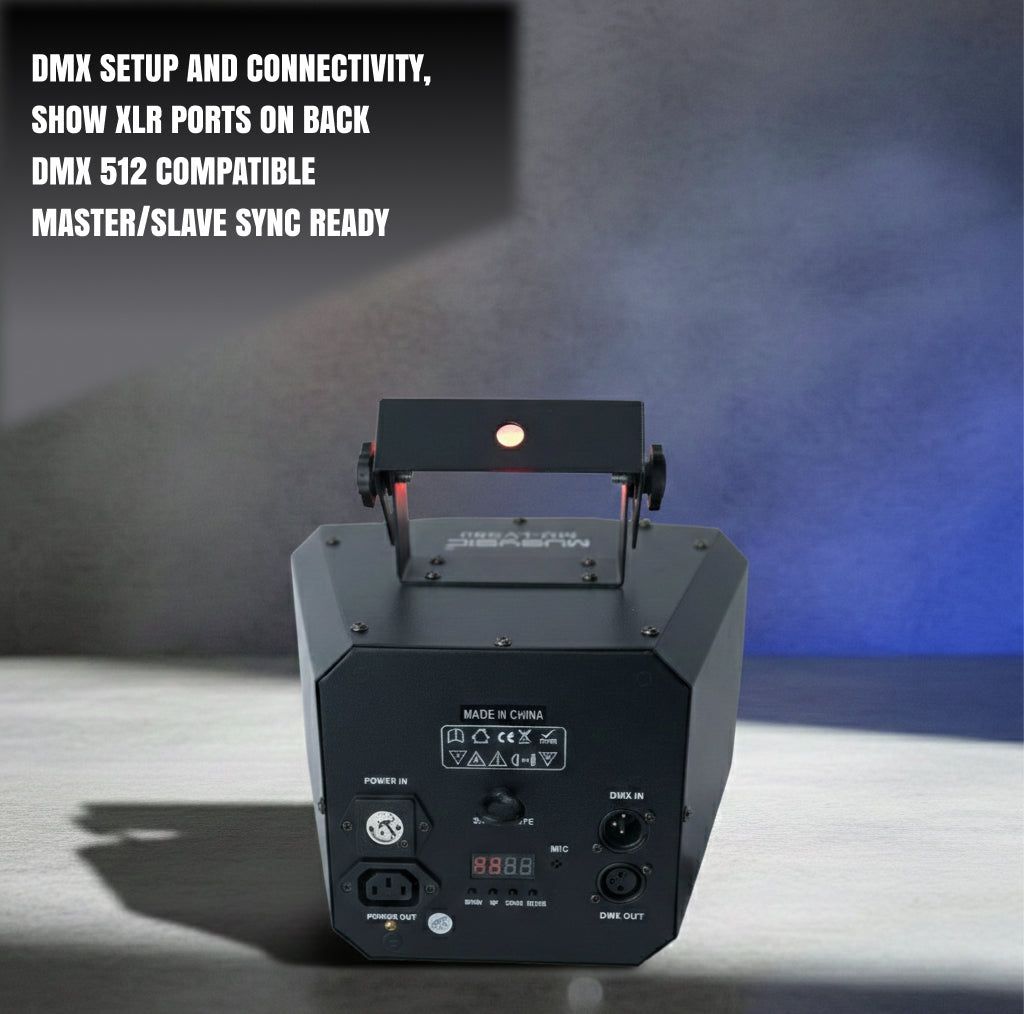

4‑channel & 26‑channel DMX modes: Choose simple or advanced control.
-
Color chase engine: 16+ chase patterns plus “All Chase” mode.
-
Strobe effect: Adjustable speed from slow to fast.
-
Auto, Sound, Master/Slave, and DMX modes: Flexible operation for any setup.
-
Digital LCD display: Easy navigation with Menu/Up/Down/Enter buttons.
-
Motorized beam movement: Adjustable speed via DMX or menu.
-
Dual‑voltage operation: AC 100–240V, 50/60Hz.
-

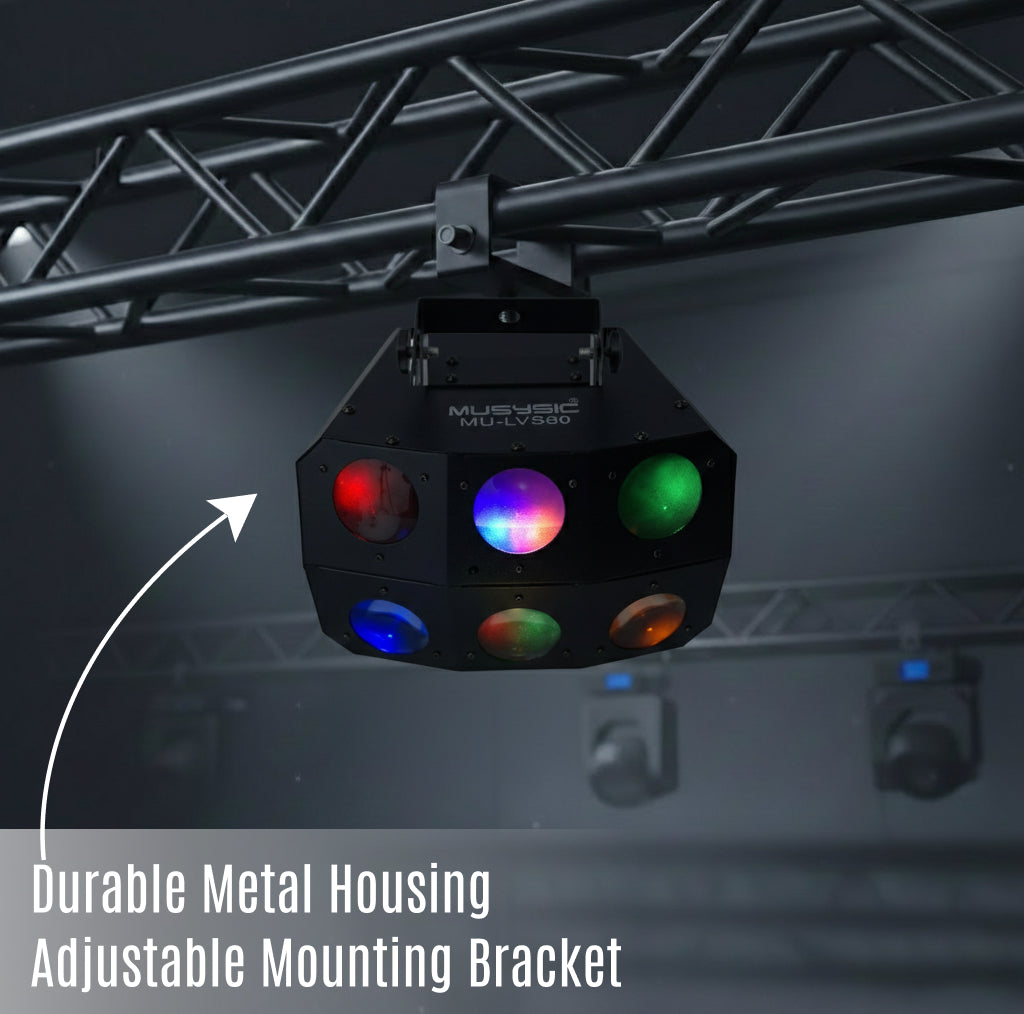

Durable housing: Built for professional use and touring environments.
Operating Modes
-
Auto Mode: Built‑in programs with adjustable speed.
-
Sound Mode: Internal microphone reacts to music.
-
Master/Slave Mode: Multiple units run synchronized shows.
-
DMX Mode: 4‑channel or 26‑channel control for full programming.
DMX Channel Functions
4‑Channel Mode
-
CH1: Master Dimmer
-
CH2: Strobe
-
CH3: Color Chase (16 patterns + All Chase)
-
CH4: Auto Speed / Sound Sensitivity
26‑Channel Mode
-
CH1: Master Dimmer
-
CH2: Strobe
-
CH3–CH26: Individual RGBW control for 6 beam zones
LCD Menu Functions
- DMX Address
- Channel Mode (4CH / 26CH)
- Slave Mode
- Sound State & Sensitivity
- Auto Mode & Speed
- Display Flip / Display On/Off
- Auto Test
- Firmware Version
Technical Specifications
-
DMX Channels: 4 / 26
-
Control Modes: Auto, Sound, Master/Slave, DMX
-
Voltage: AC 100–240V
-
Frequency: 50–60Hz
-
Working Temperature: 20°C – 40°C
Ideal Applications
- DJs & mobile entertainers
- Clubs & nightlife venues
- Weddings & private parties
- Stage lighting & concerts
- Bars & lounges
- Event production companies
The MUSYSIC MU-LVS80 delivers powerful Derby Matrix Beam effects, advanced DMX control, and flexible operating modes—making it the perfect choice for lighting designers, DJs, and event professionals who want to fill the room with high‑energy, multi‑beam color effects.
